Bosch DEM66AC00B, Integrated cooker hood
- LED Illumination: The energy-saving lighting provides bright and clear lighting for the hob area.
- High extraction rate - for continuously clean air in the kitchen.
- Adjust the extraction intensity according to your cooking needs.
- Ducted or Non-ducted Options
2 Year Warranty
Key performance features:

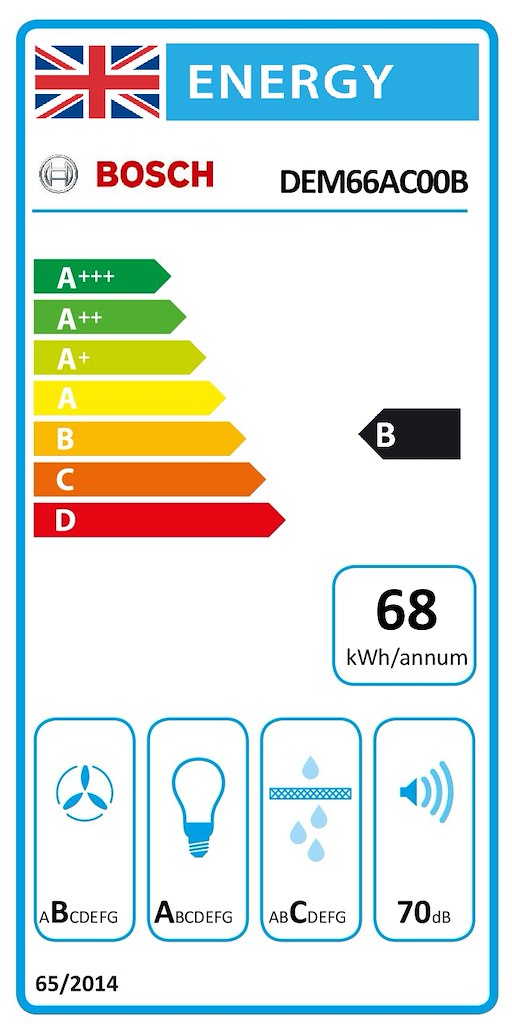

- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 max. 625 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 70 dB dB*
Features
- Push button control for extractor speeds and light
- 3 power levels
- 2 x 3W LED
- Single motor
- 2 removable metal grease filter cassettes
Design
- Integrated hood
- Installation: Between Cupboards
- Push button control
- Mechanical
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction charcoal filter (accessory) needed
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
- Power rating: 256 W
- Light Intensity: 188 lux
- Colour Temperature: 2700 K
- Electrical cable length 1.5 m
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 68.4 kWh/year*
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 402-402 x 599 x 271 mm
- Dimensions recirculating (HxWxD): 402-402 x 599 x 271 mm
Optional accessories
- Recirculating kit DWZ0IM0A0
EAN
4242005041121
Features | Benefits
Integrated cooker hoods pull out when in use and close neatly to conceal when not in operation.
Country of Origin - Code
POLAND
Brand Name
Bosch
Width (mm)
599
Depth (mm)
271
Net Weight
10.8
Gross Weight
13.3
Energy Efficiency Class
B
Noise Level
70
Typology
Built-in/Built-under
Type of Control Settings
Button
Construction Type
Built-In
Installation Type
Built-in
Appliance Current (A)
10
Appliance Voltage (V)
220-240
Appliance Frequency (Hz)
50; 60
Approval Certificates
CE
Plug Type
GB plug
Number of Motors
1
Number of Lights
2
Cord Length
150
Operating Mode
Convertible
Motor Location
Integrated motor in hood body
Fluid Dynamic Efficiency
25.4
Fluid Dynamic Efficiency Class
B
Lighting Efficiency
29.0
Lighting Efficiency Class
A
Grease Filtering Efficiency
76.0
Max Air Flow
625
Odor Filter
No
Diameter of Air Outlet
0
Colour Name
Silver
Grease Filtering Efficiency Class
C
Grease Filter Type
Kassette
Min Air Flow
256
Air Flow Boost
0.0
Sound Power Max Speed
70
Sound Power Min Speed
49
Max Output Air Extraction
625
Max Output Recirculating Air
416
Grease Filter Material
Washable aluminium
No Return Air Flow Flap
Yes
Product Group
Hood
Department Name
Integrated Hoods
Division Name
Cooking
Major Department Name
Hoods
Height (mm)
402
Type of Control
Mechanical
Warranty Duration
2
Type of Light
N/A
Suggested Hierarchy
313
